The perfect balance between the classic DIY-friendly MDT and some of the features of MDTX but with a larger, 5" high quality IPS Display

If you are new to MDT/MDTX, please take a look at the manual as a first step. This should clarify many of the questions you might have if you are new to it. The following link will always point to the latest version: MDT/MDTX Build Guide/Manual

https://codeberg.org/positionhigh/MicroDexed-touch/src/branch/main/doc/MicroDexed-touch-manual.pdf

Overview

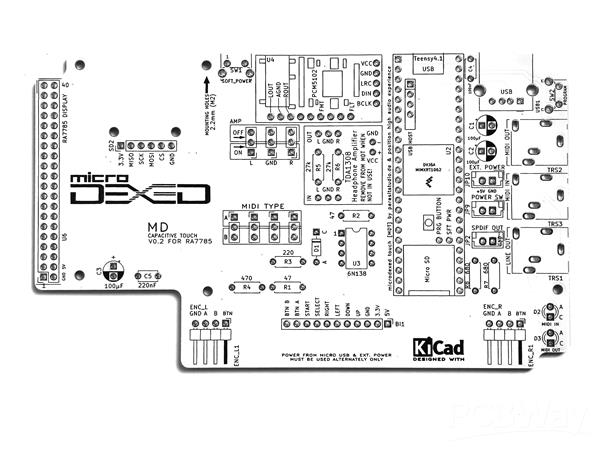

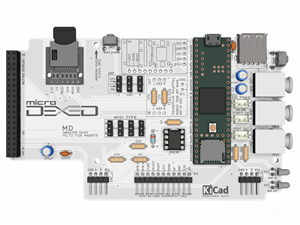

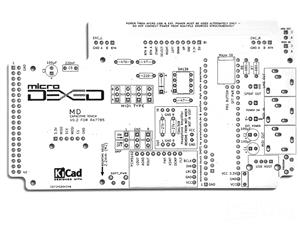

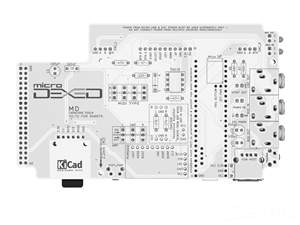

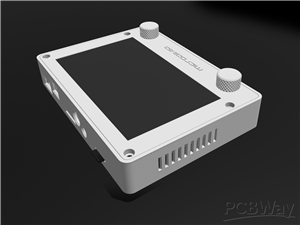

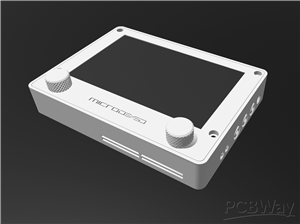

The [MDT-RA8875] represents the next evolution in the MicroDexed family, combining the approachable, DIY-friendly design of the original MDT with a larger Display and improved storage capabilities similar to that of MDTX. This PCB is designed for makers who want the flexibility of a completely through-hole assembly.

Global Video Overview:

Key Distinction: Unlike the MDTX which comes with pre-assembled SMD components and is intended for PCBWay assembly services, this version is built for true DIY enthusiasts who enjoy the soldering process and want full control over their build.

What Makes This PCB Special

Dual SD Card Support

The additional SD card slot allows for file management, copying, moving files, and flat directory navigation between cards (feature actively in development but already functional). It however does not replace the internal main SD card.

Perfect for moving / copying files from and to the devices internal SD card. Single files and folders with subdirectories can be copied.

Pure DIY Design

• No SMD Components - All parts are through-hole, making assembly accessible with basic soldering equipment
• Same approachable build experience as the original MDT
• Clear, well-spaced component layout for easy soldering
• Familiar MDT DNA
• Works with the same Teensy 4.1 and PCM5102 Audio Board - you can take over many components from your previous build
• Very fast Capacitive touch display (by far the fastest responding touch of all versions, yet)

Ideal DIY build for :

• Those who want the extra SD card slot without the complexity of SMD soldering or RGB encoder configuration
• Those who prever a larger, high quality Display with very fast Touch response
• Users who prefer the classic MDT build experience with better storage capabilities

Important Notes

📖 Always check the MDT/MDTX Build Guide/Manual for the latest information before building

🔗 For the bleeding-edge version with SMD components and RGB encoders, visit the MDTX project page

🛒 Pre-soldered Teensy 4.1 with PSRAM is available from Protosupplies

Join our Discord Chat:

https://discord.gg/XCYk5P8GzF

Detailed build instructions, BOM, full source code are at the project homepage/repository linked below.

Project Playlist:

https://www.youtube.com/watch?v=-JIxHMlZM0k&list=PLHTypoMU1QoGOXPli8bjR6MknPiQpubHl

If you want to donate to this project, please check out this link (Liberapay):

https://liberapay.com/positionhigh/donate

or PayPal: https://www.paypal.com/donate/?hosted_button_id=5565UW72LDFML

Other Versions (with 3.2" Display):

[MDT]

[MDTX]

Ready to build? Start with the MDT/MDTX Build Guide/Manual for comprehensive assembly instructions.
